Tam Rohloff
Rohloff equipped, expedition bike.
The Tam is our round the world, carry everything ‘including the kitchen sink’ expedition bike. Designed from the ground up to be the best handling, most comfortable, most capable off-road touring bike available.
01

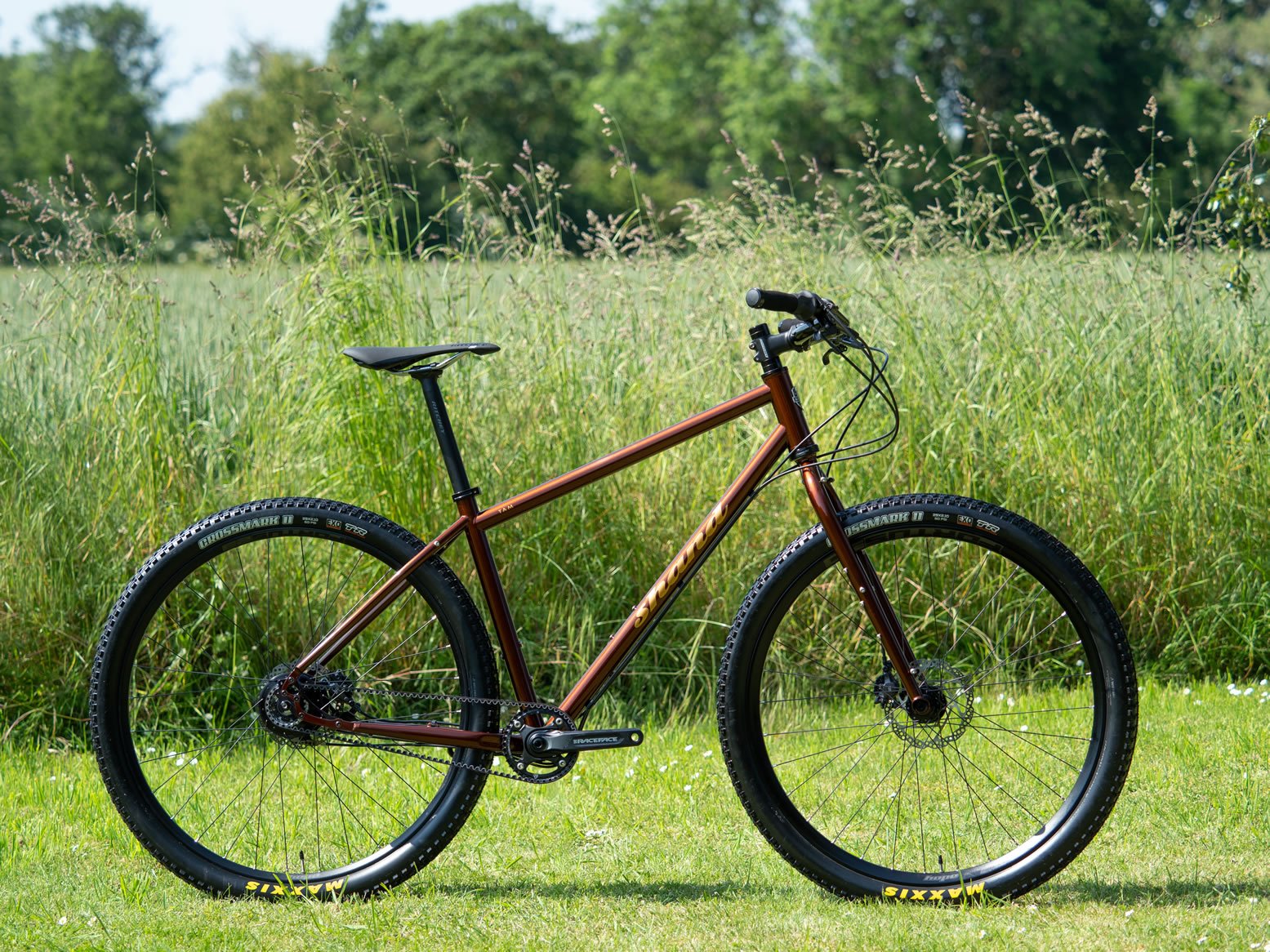

*Note model shown features Jones H bars which are no longer available.*
We’re all about versatility and reliability and the Tam is no exception. Specifically designed and built around the ultra-reliable Rohloff Speedhub and Gates Carbon Belt Drive you’ll not be left at the side of the road trying to fix a mechanical.
Built from Reynolds 631 steel tubing on the front triangle and Dedacciai tubing on the rear end, the Tam will take pretty much anything you can throw at it. And should the unthinkable happen, the frame gets damaged on your trip, you can be rest assured that it can be easily repaired.
As with the majority of Shand bikes, modular cable routing and rear dropouts can be changed to be compatible with single speed or derailleur drivetrains at a later date. If you’re ordering a frame only, the modular rear dropouts are available with the following transmission and disc brake options:
- 135×10 QR
- 142×12 bolt-thru
- Rohloff
- Singlespeed
- Derailleur (including direct mount)
- IS, Post and Flat disc brake mounts
- Integrated frame splitter for beltdrive
| Frame | Tig welded Reynolds 631 custom drawn tubing. Longer chainstays for stability and pannier/heel clearance. Longer headtube for more upright riding position. S-Bend stays for tyre and heel clearance. Sloping top tube. Front facing binder slot. Derailleur, singlespeed, Rohloff Speedhub, and belt-drive compatible. |
| Fork | Steel fork with Anything cage mounts, lowrider mount, mudguard mounts, internal dynamo routing optional at no extra cost. "Please confirm when making an order". |
| Headtube / Headset | 44mm. Cane Creek headset installed on complete bike. |
| Bottom Bracket | Rideworks EBB |
| Seat Tube | 30.9 seatpost. |
| Rear Dropouts | Polydrop dropouts compatible (with additional inserts) with Rohloff, singlespeed, 142x12, direct mount and standard derailleur transmissions. Fully compatible with belt-drive. |
| Cable Routing | Down tube, full outer bolt on guides. Versatile guides for Rohloff, singlespeed or derailleur transmissions. |
| Fitting | 3 sets of bottle mounts and rack mounts as standard. |
| Tyres | Maxxis Crossmark II 29x2.1 Front and Rear |
| Wheels | Rohloff/Hope Fortus W30 29er |
| Headset | Rideworks |
| Stem | Ritchey |

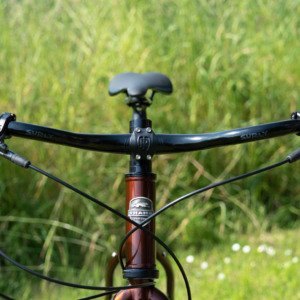

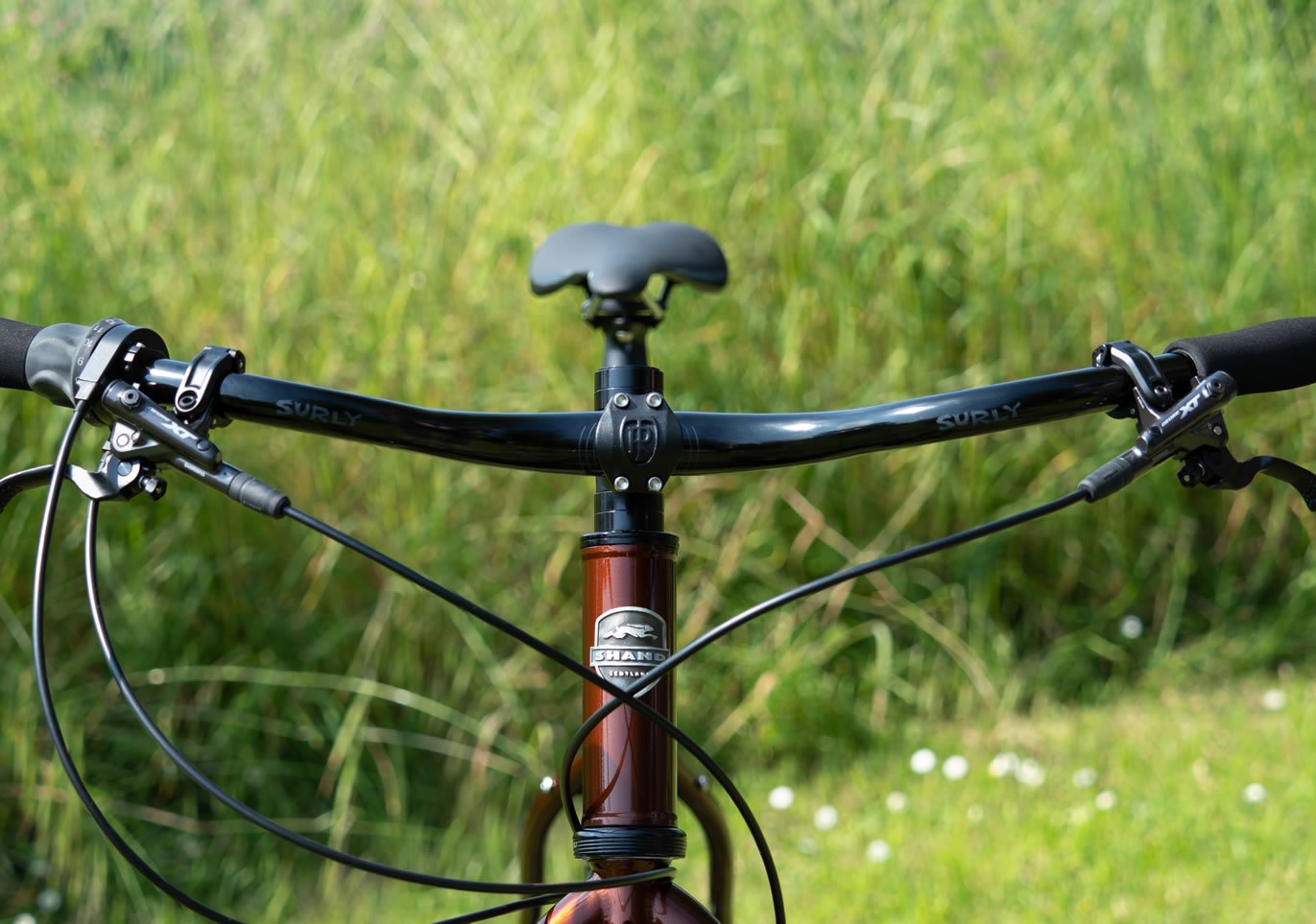

| Bars | Surley Tash |
| Shifters | Rohloff |
| Brakes | Shimano XT M8100 hydraulic discs |
| Front Mech | N/A |
| Rear Mech | N/A |
| Chain/Belt | Gates Carbondrive Belt |
| Crank | Race Face |
| Bottom Bracket | Rideworks EBB |
| Cassette/Sprocket | Gates Beltrdive Sprocket |
| Seatpost | Ritchey |
02
Geometry
| A - Head Angle | 70° |
| B - Seat Angle | 74° |
| C - Top Tube | 563mm |
| D - Seat Tube | 430mm |
| E - BB Drop | 75mm |
| F - Chainstay Length | 450mm |
| G - Headtube Length | 100mm |
| H - Wheelbase | 1075mm |
| I - Front-Centre | 636mm |
| J - Fork Offset | 47mm |
| K - Trail | 86mm |
| L - Reach | 384mm |
| M - Stack | 618mm |
| A - Head Angle | 70° |
| B - Seat Angle | 74° |
| C - Top Tube | 592mm |
| D - Seat Tube | 450mm |
| E - BB Drop | 75mm |
| F - Chainstay Length | 450mm |
| G - Headtube Length | 120mm |
| H - Wheelbase | 1106mm |
| I - Front-Centre | 667mm |
| J - Fork Offset | 47mm |
| K - Trail | 86mm |
| L - Reach | 408mm |
| M - Stack | 637mm |
| A - Head Angle | 70° |
| B - Seat Angle | 73° |
| C - Top Tube | 618mm |
| D - Seat Tube | 470mm |
| E - BB Drop | 75mm |
| F - Chainstay Length | 450mm |
| G - Headtube Length | 140mm |
| H - Wheelbase | 1108mm |
| I - Front-Centre | 669mm |
| J - Fork Offset | 47mm |
| K - Trail | 86mm |
| L - Reach | 415mm |
| M - Stack | 655mm |
| A - Head Angle | 70° |
| B - Seat Angle | 73° |
| C - Top Tube | 631mm |
| D - Seat Tube | 480mm |
| E - BB Drop | 75mm |
| F - Chainstay Length | 450mm |
| G - Headtube Length | 150mm |
| H - Wheelbase | 1135mm |
| I - Front-Centre | 695mm |
| J - Fork Offset | 47mm |
| K - Trail | 86mm |
| L - Reach | 426mm |
| M - Stack | 665mm |
| A - Head Angle | 70° |
| B - Seat Angle | 73° |
| C - Top Tube | 669mm |
| D - Seat Tube | 520mm |
| E - BB Drop | 75mm |
| F - Chainstay Length | 450mm |
| G - Headtube Length | 170mm |
| H - Wheelbase | 1173mm |
| I - Front-Centre | 734mm |
| J - Fork Offset | 47mm |
| K - Trail | 86mm |
| L - Reach | 455mm |
| M - Stack | 693mm |
