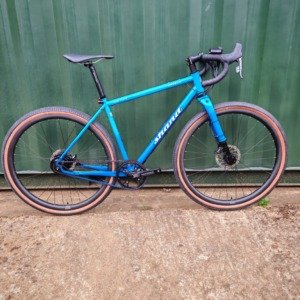

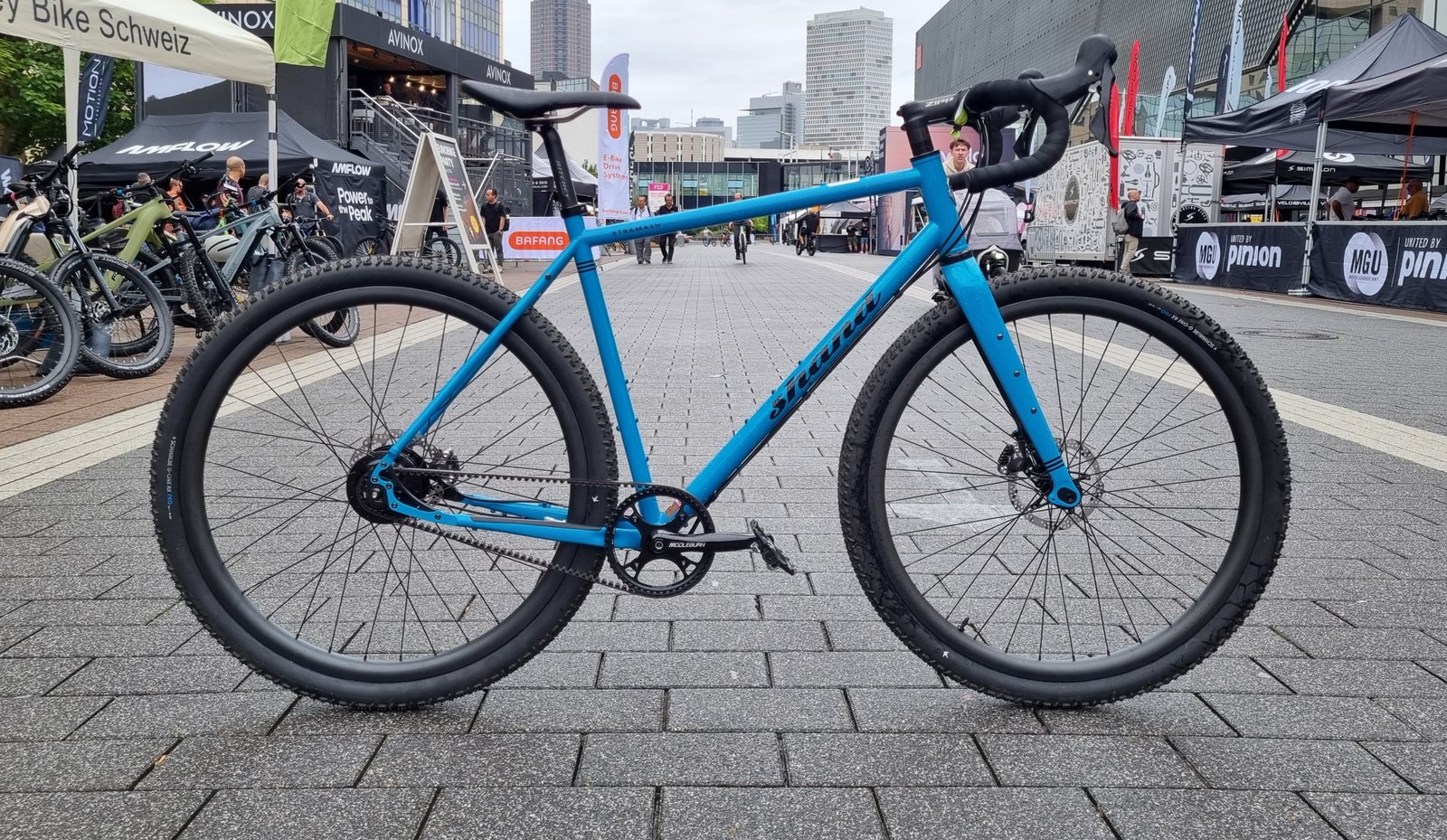

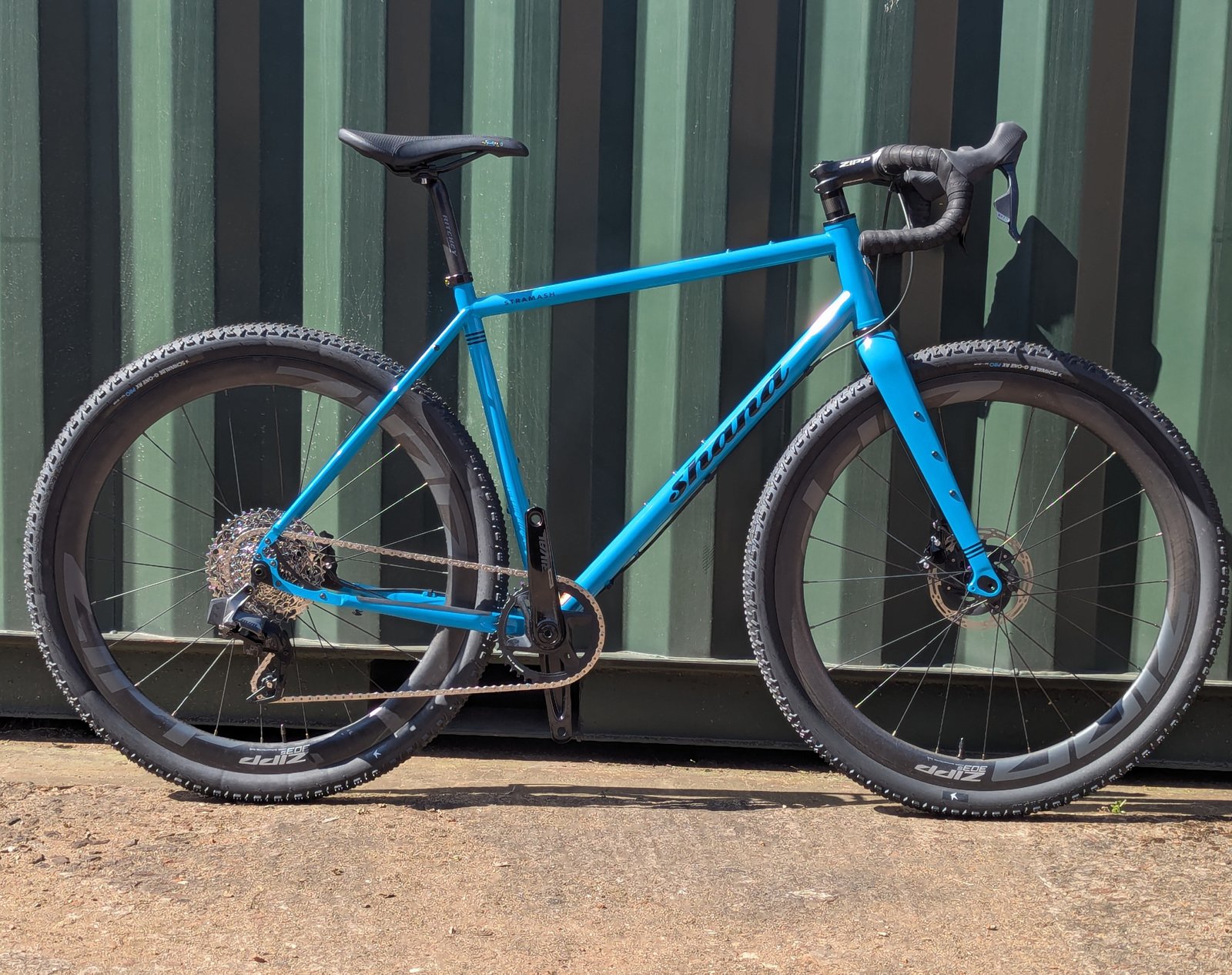

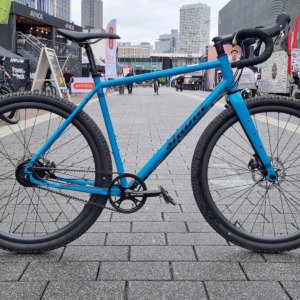

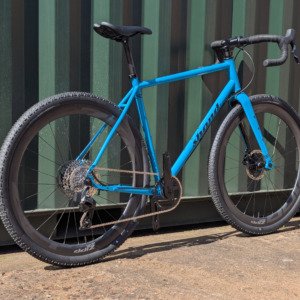

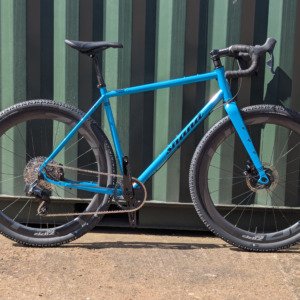

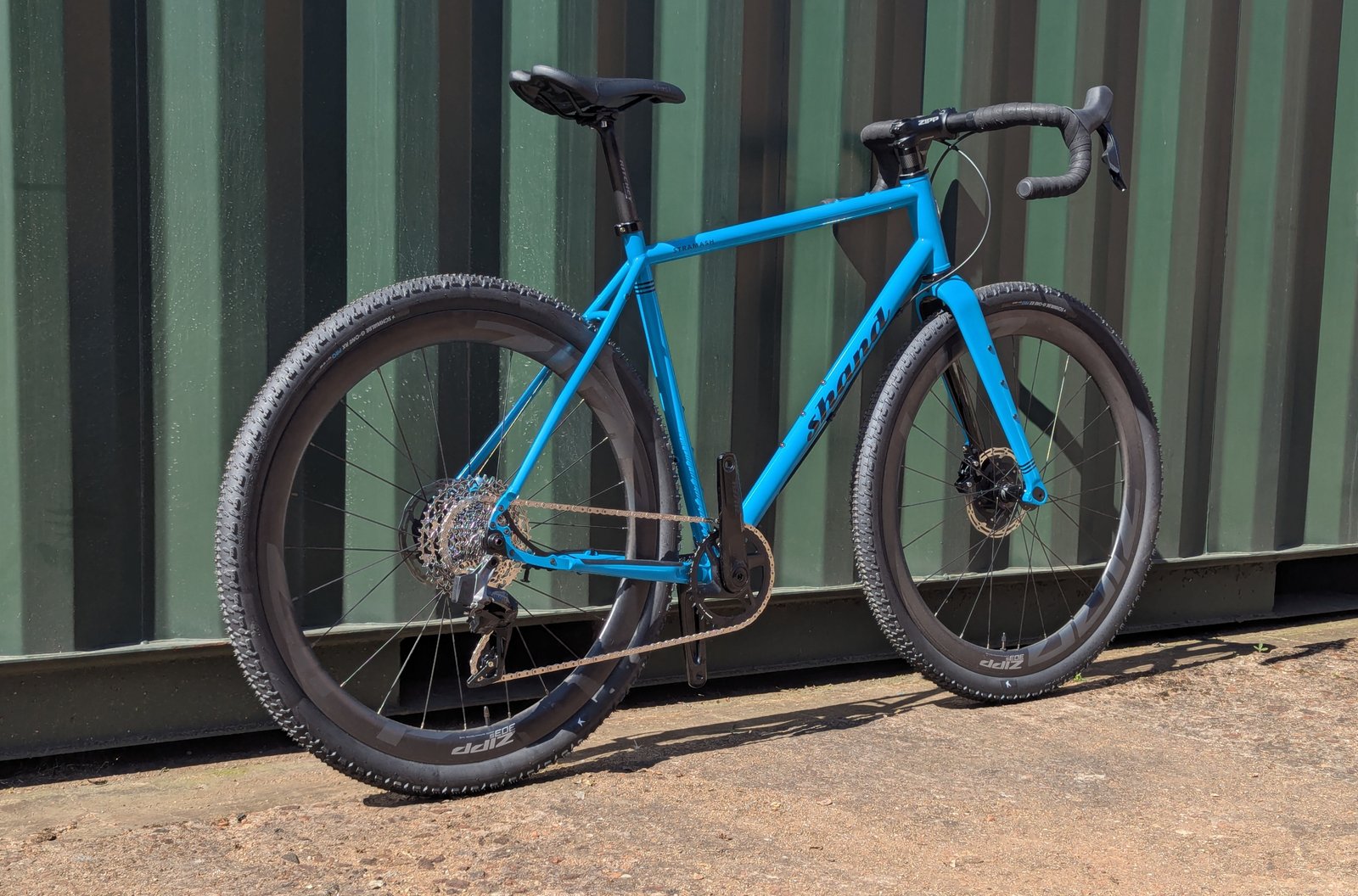

Stramash
Fast and forgiving gravel master
The Stramash very much shares its DNA with the Stooshie but instead is designed around suspension and dampening to allow for taming of trail to give you more control without developing fatigue.
Designed and built specifically around the suspension and dropper seatposts, a Stramash is a capable machine without sacrificing any light weight lustre of Columbus tubing.
01

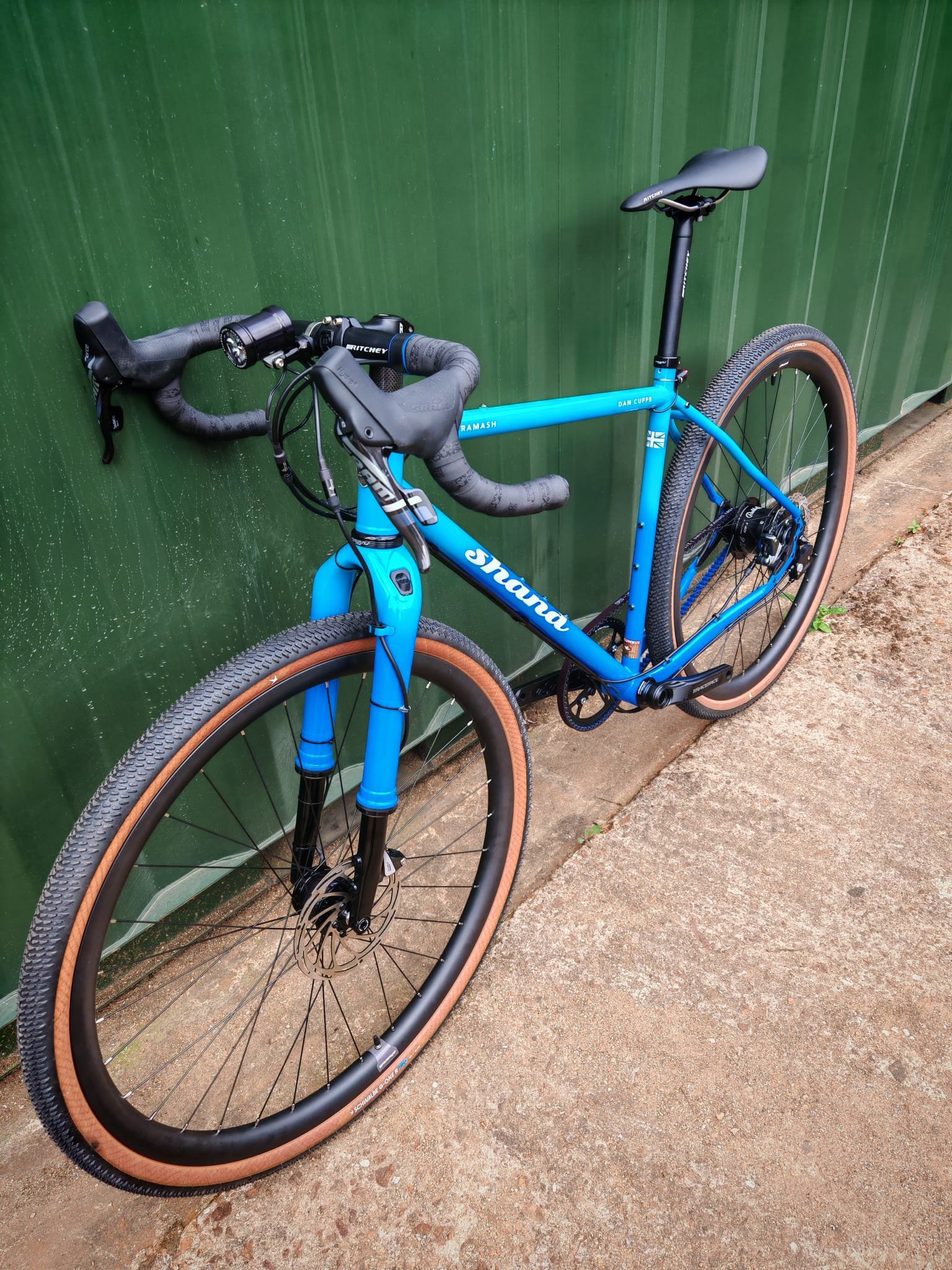

Introducing our Stramash Rohloff (formerly the Kirk) updated with the Cane Creek 40mm invert fork and the ability to run a 50mm tyre. This ultimate gravel machine is availble to order, with or withiut the invert fork.
Built from high-spec custom Life tubing from legendary Italian tube manufacturers Columbus, we wanted this bike to be an antidote to the void between gravel and mountain bike. Now you don’t have to sacrifice fatigued hands and bums for the sake of ultimate endurance capabilities.
The Stramash fulfils the precious need for some form of dampening and adjustability to be possible through freshly launched products from both Rockshox and Redshift, based around our favourite Stooshie, geometry has been tweaked, more clearance has been made available, giving a steed that can ultimately tackle fairly foreboding terrain.

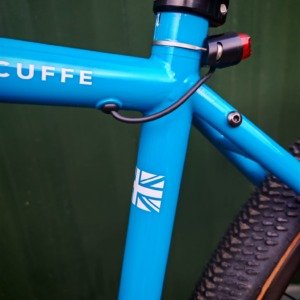

Adaptability has been bestowed upon the frame itself, bottle bosses on the front of top tube, anything mounts on both downtube and seat tube, external alloy bale guides, Polydrop dropouts enabling a array of axle options show below and rack/mudguard mounts, dropper hose port and split rear plate to enable a carbon belt drive to be utilised.
Dropout options: –
- Rohloff Speed hub 14 Speed
- Can Creek Invert 40mm fork
- Flat disc brake mounts
- Gates Carbon Drive belt
- Sram Force Brakes
- 50mm Tyres
- Top Tube Bag Bosses
Frame | Tig welded Columbus custom blend tubing. S-Bend stays for tyre and heel clearance. Sloping top tube. Front facing binder slot. Clearance for 700 x 48mm" tyres. |
Fork | Rockshox Rudy |
Headtube / Headset | Rideworls 44mm headset installed on complete bike. |
Bottom Bracket | Sram PF30 BB |
Seat Tube | 27.2mm seatpost, 28.6mm front mech clamp. |
Rear Dropouts | Polydrop dropouts compatible (with additional inserts) with Rohloff, singlespeed, 142x12, direct mount and standard derailleur transmissions. Fully compatible with belt-dive. |
Cable Routing | Down tube, full outer, bolt on guides. Dropper guide |
Fitting | 3 sets of bottle mounts 2 of which are Anything mounts,, mudguard and rack mounts as standard. |
Tyres | Schwalbe |
Wheels | Hope 20Five |
Headset | Cane Creek 110 |
Stem | Ritchey |
Bars | Ritchey semi flared dropbar |
Shifters | Sram |
Brakes | Sram |
Front Mech | N/A |
Rear Mech | Sram XPLR |
Chain/Belt | Gates CentreTrack |
Crank | Sram XPLR |
Bottom Bracket | Sram PF30 BB |
Cassette/Sprocket | 11/42 Sram |

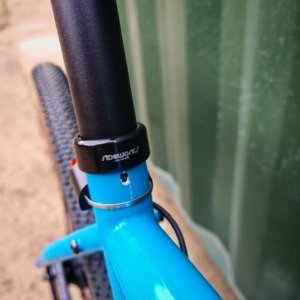

Seatpost | Rockshox XPLR |
02
Geometry
A - Head Angle | 71.5° |
B - Seat Angle | 73.5° |
C - Top Tube | 564mm |
D - Seat Tube | 480mm |
E - BB Drop | 75mm |
F - Chainstay Length | 435mm |
G - Headtube Length | 120mm |
H - Wheelbase | 1038mm |
I - Front-Centre | 614mm |
J - Fork Offset | 45mm |
K - Trail | 73mm |
L - Reach | 387mm |
M - Stack | 598mm |
A - Head Angle | 71° |
B - Seat Angle | 73.5° |
C - Top Tube | 573mm |
D - Seat Tube | 51mm |
E - BB Drop | 75mm |
F - Chainstay Length | 435mm |
G - Headtube Length | 130mm |
H - Wheelbase | 1052mm |
I - Front-Centre | 628mm |
J - Fork Offset | 45mm |
K - Trail | 76.5mm |
L - Reach | 393mm |
M - Stack | 605mm |
A - Head Angle | 70.5° |
B - Seat Angle | 73.5° |
C - Top Tube | 580mm |
D - Seat Tube | 530mm |
E - BB Drop | 75mm |
F - Chainstay Length | 435mm |
G - Headtube Length | 150mm |
H - Wheelbase | 1065mm |
I - Front-Centre | 641mm |
J - Fork Offset | 45mm |
K - Trail | 79mm |
L - Reach | 395mm |
M - Stack | 622mm |
A - Head Angle | 70.0° |
B - Seat Angle | 73.5° |
C - Top Tube | 593mm |
D - Seat Tube | 550mm |
E - BB Drop | 75mm |
F - Chainstay Length | 435mm |
G - Headtube Length | 160mm |
H - Wheelbase | 1085mm |
I - Front-Centre | 661mm |
J - Fork Offset | 45mm |
K - Trail | 83mm |
L - Reach | 407mm |
M - Stack | 630mm |
