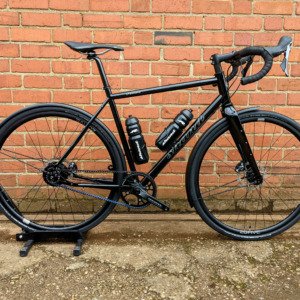

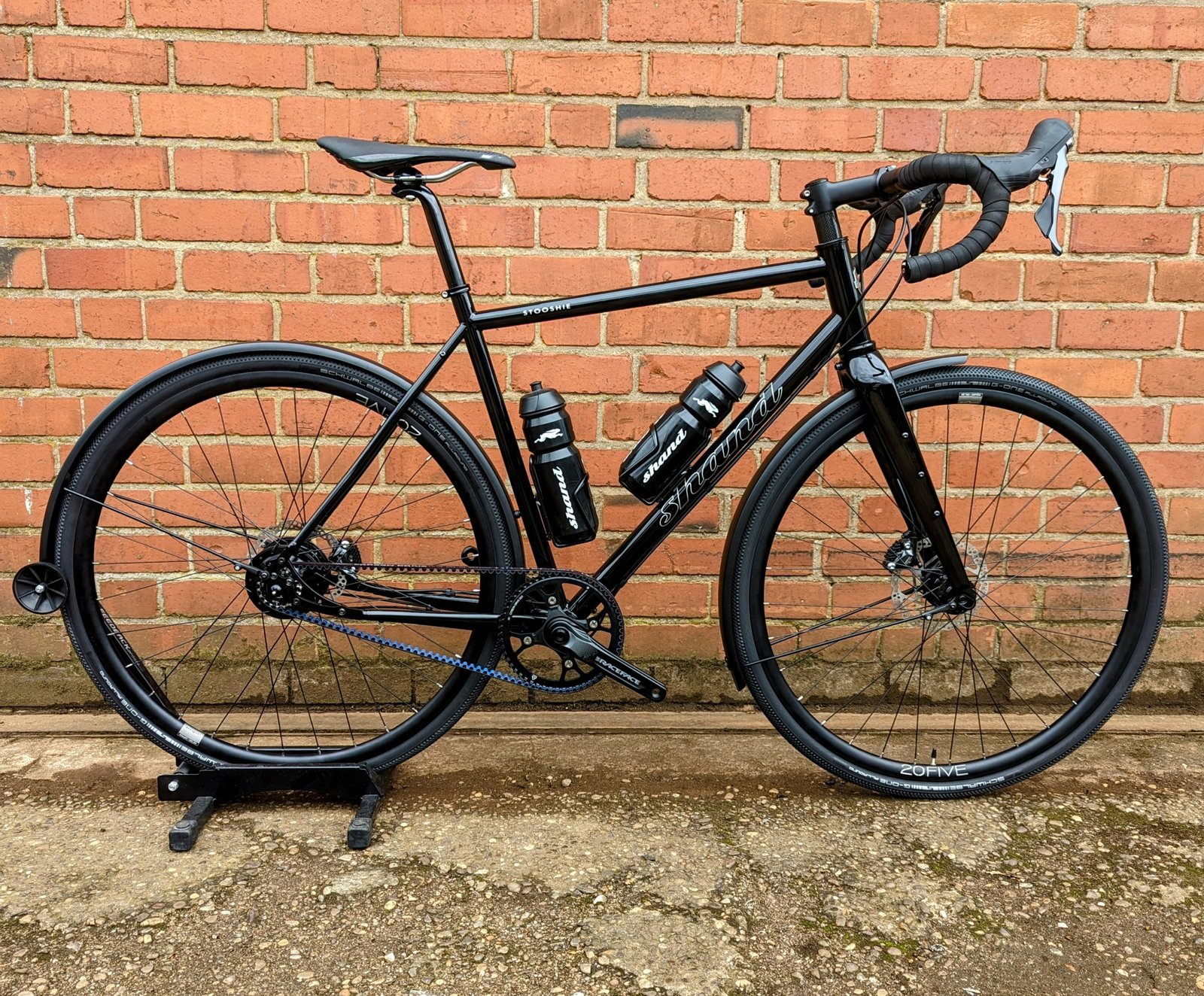

Stooshie Rohloff
Fast, versatile and virtually maintenance free.
Fast road, gravel or lightweight sports tourer, the Stooshie is the all-road bike you’ve been looking for. Hand built to order in our workshop with oversized, lightweight tubes from Columbus you have the ideal bike for long, fast miles through terrain that only classic days in the saddle can provide.

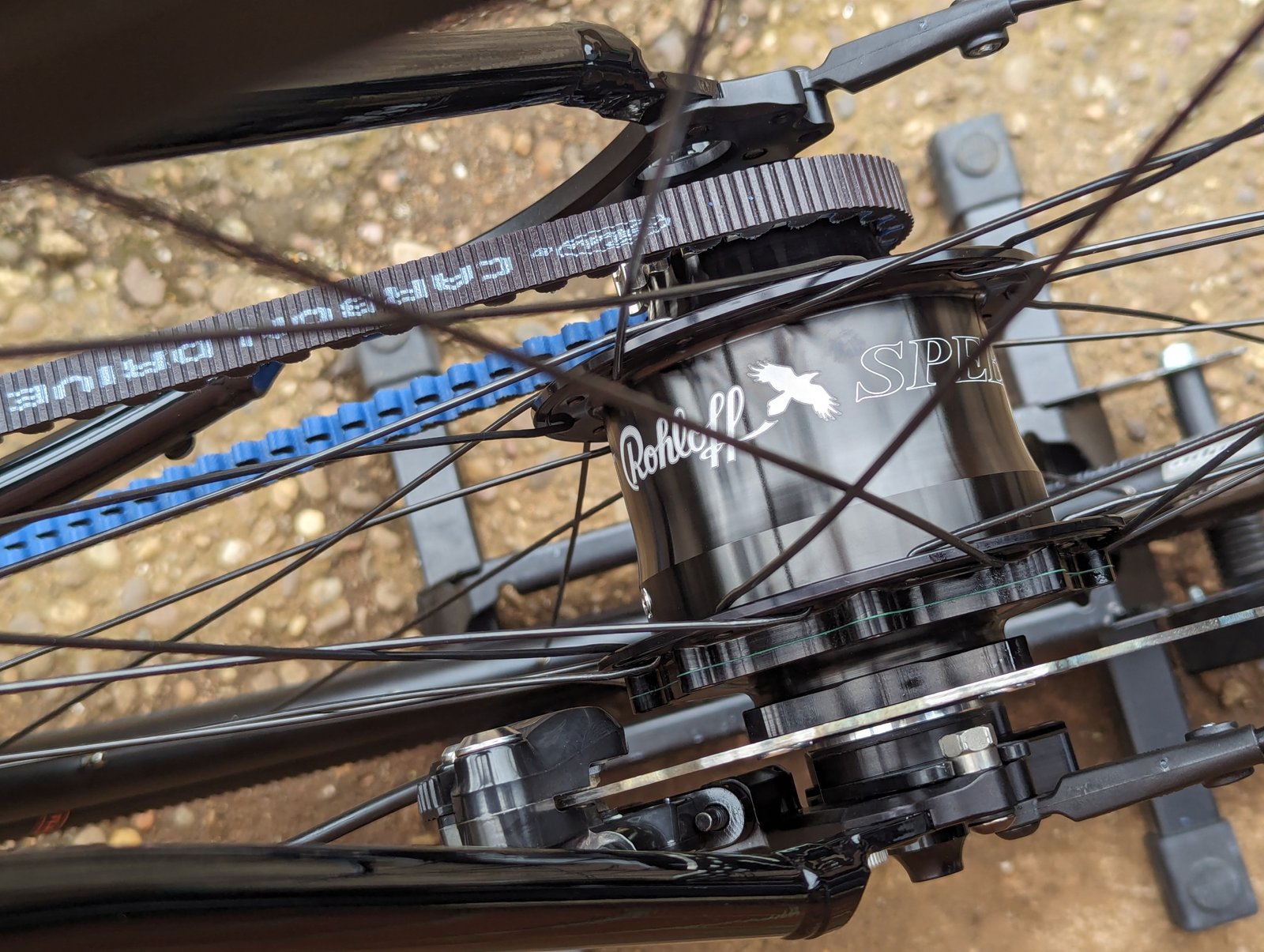

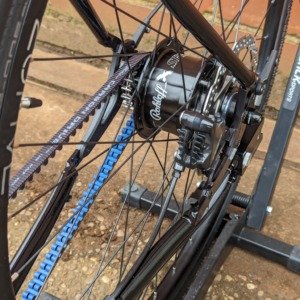

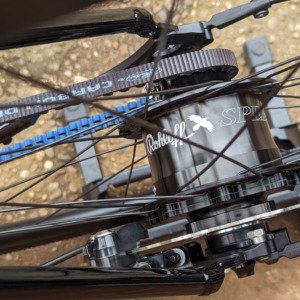

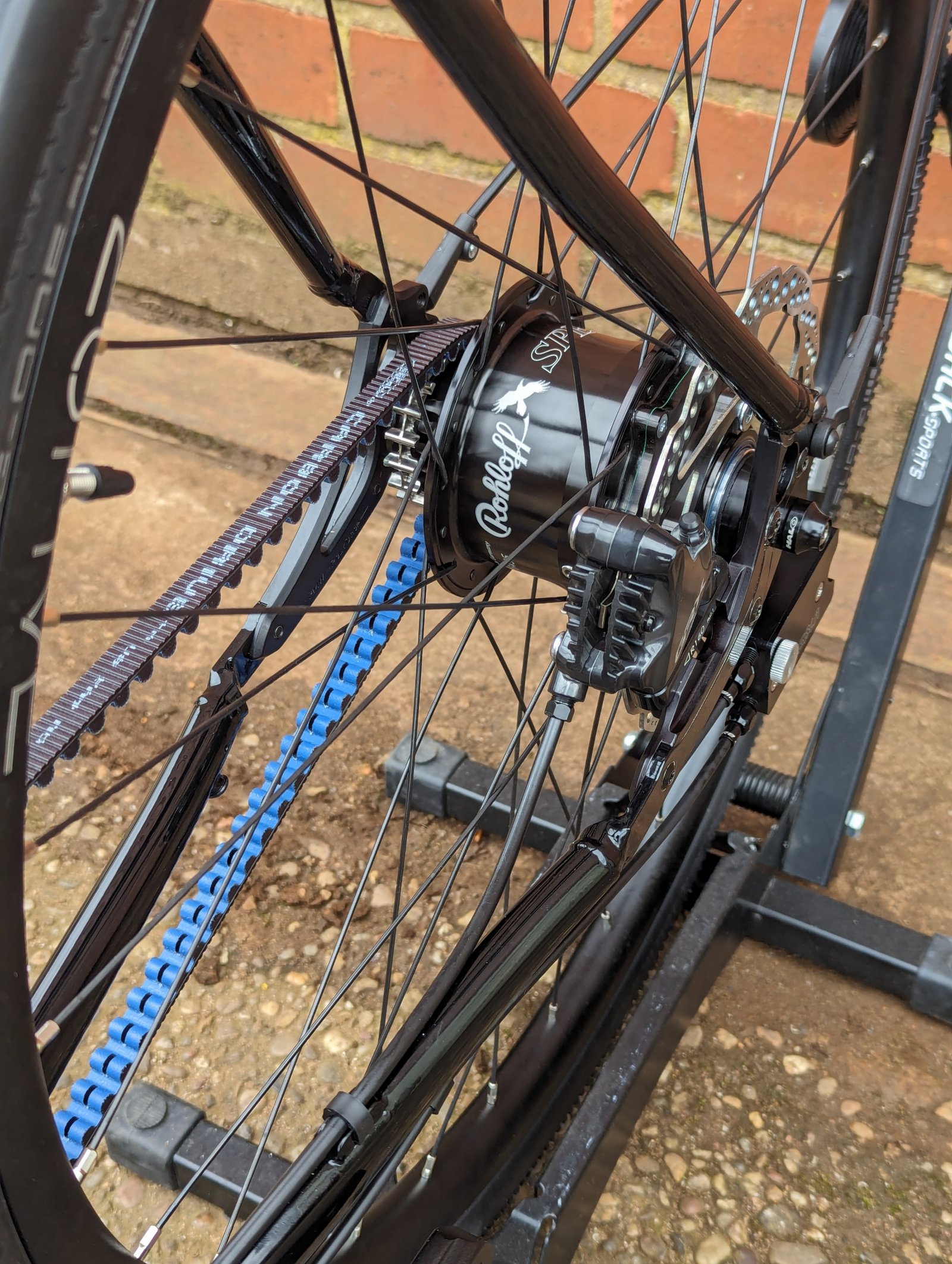

Designed and built specifically around the Rohloff Speedhub, the Gates Carbon Belt Drive is fitted as standard with belt tension adjusted using our innovative PF30 Eccentric Bottom Bracket solution. Add in clearance for tyres up to 45mm, this makes for an extremely versatile and reliable bicycle, with low maintenance requirements from the Rohloff hub & Carbondrive belt-no more oily chains to bother about!
01
The Stooshie Rohloff also comes with integrated brake and shifter levers as standard. Previously, the only way to change gears with Rohloff Speedhub was with a twist shifter. This is a reliable and easy to use system, but for riders used to dropbar STI style shifting it can feel a little unusual. The integrated shifter uses a SRAM shifter to provide a familiar shifting and a Gebla Rohbox in place of the Rohloff transfer box. The SRAM shifter is paired with the SRAM Rival hydraulic disc brake system.
As with the majority of Shand bikes, modular cable routing and rear dropouts can be changed to be compatible with single speed or derailleur drivetrains at a later date. If you’re ordering a frame only, the modular rear dropouts are available with the following transmission and disc brake options.
- 135×10 QR
- 142×12 bolt-thru
- Rohloff
- Single speed
- Derailleur (including direct mount)
- IS, Post and Flat disc brake mounts
- Integrated frame splitter for belt drive

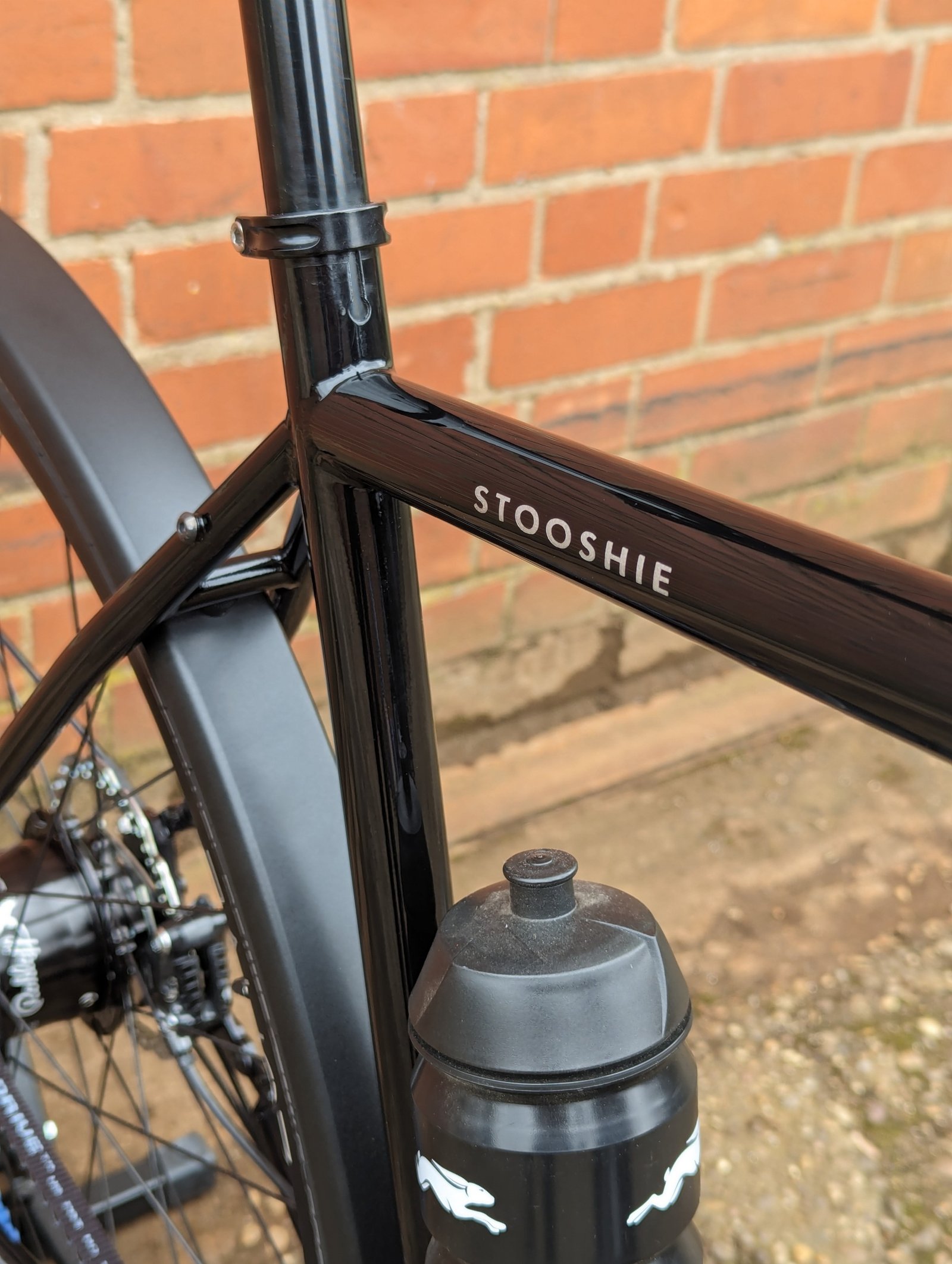

| Frame | Tig welded Columbus/Dedacciai custom blend tubing. S-Bend stays for tyre and heel clearance. Sloping top tube. Front facing binder slot. |
| Fork | Carbon fork, tapered steerer, bolt-thru axle, mudguard eyes. |
| Headtube / Headset | 44mm. Cane Creek headset installed on complete bike. |
| Bottom Bracket | Eccentric PF30 BB |
| Seat Tube | 27.2mm seatpost, 31.8 front mech clamp. |
| Rear Dropouts | Polydrop dropouts compatible (with additional inserts) with Rohloff, singlespeed, 142x12, direct mount and standard derailleur transmissions. Fully compatible with belt-dive. |
| Cable Routing | Down tube, full outer, bolt on guides. |
| Fitting | 3 sets of bottle mounts, mudguard and rack mounts as standard. |
| Tyres | Schwalbe G-One 35c All Round |
| Wheels | Rohloff, Hope Pro4 Evo Hubs, Hope 20Five rims |
| Headset | Rideworks Uk Made |
| Stem | Ritchey |
| Bars | Ritchey Flared Alloy |
| Shifters | SRAM Rival/Gebla Rohbox |
| Brakes | SRAM Rival Hydraulic disc |
| Front Mech | N/A |
| Rear Mech | N/A |
| Chain/Belt | Gates CentreTrack |
| Crank | Race Face Aeffect |
| Bottom Bracket | Eccentric PF30 BB |
| Cassette/Sprocket | Gates Beltdrive sprocket |
| Seatpost | Ritchey |
02
Geometry
| A - Head Angle | 70° |
| B - Seat Angle | 74° |
| C - Top Tube | 522mm |
| D - Seat Tube | 500mm |
| E - BB Drop | 68mm |
| F - Chainstay Length | 430mm |
| G - Headtube Length | 130mm |
| H - Wheelbase | 1022mm |
| I - Front-Centre | 602mm |
| J - Fork Offset | 55mm |
| K - Trail | 67mm |
| L - Reach | 358mm |
| M - Stack | 565mm |
| A - Head Angle | 70.5° |
| B - Seat Angle | 74° |
| C - Top Tube | 537mm |
| D - Seat Tube | 520mm |
| E - BB Drop | 68mm |
| F - Chainstay Length | 430mm |
| G - Headtube Length | 140mm |
| H - Wheelbase | 1032mm |
| I - Front-Centre | 612mm |
| J - Fork Offset | 55mm |
| K - Trail | 63mm |
| L - Reach | 369mm |
| M - Stack | 576mm |
| A - Head Angle | 71.5° |
| B - Seat Angle | 72° |
| C - Top Tube | 573mm |
| D - Seat Tube | 540mm |
| E - BB Drop | 68mm |
| F - Chainstay Length | 430mm |
| G - Headtube Length | 150mm |
| H - Wheelbase | 1038mm |
| I - Front-Centre | 606mm |
| J - Fork Offset | 55mm |
| K - Trail | 57mm |
| L - Reach | 381mm |
| M - Stack | 590mm |
| A - Head Angle | 71.5° |
| B - Seat Angle | 72° |
| C - Top Tube | 585mm |
| D - Seat Tube | 560mm |
| E - BB Drop | 68mm |
| F - Chainstay Length | 430mm |
| G - Headtube Length | 160mm |
| H - Wheelbase | 1050mm |
| I - Front-Centre | 630mm |
| J - Fork Offset | 55mm |
| K - Trail | 57mm |
| L - Reach | 390mm |
| M - Stack | 599mm |
| A - Head Angle | 71.5° |
| B - Seat Angle | 71.5° |
| C - Top Tube | 610mm |
| D - Seat Tube | 590mm |
| E - BB Drop | 68mm |
| F - Chainstay Length | 430mm |
| G - Headtube Length | 190mm |
| H - Wheelbase | 1059mm |
| I - Front-Centre | 654mm |
| J - Fork Offset | 55mm |
| K - Trail | 57mm |
| L - Reach | 400mm |
| M - Stack | 628mm |
