Bahookie Rohloff
Rohloff equipped adventure 29er and 650B+ steel hardtail.

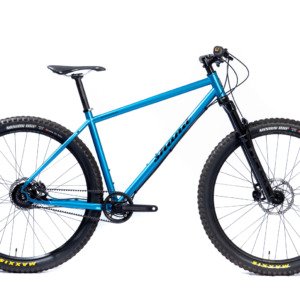

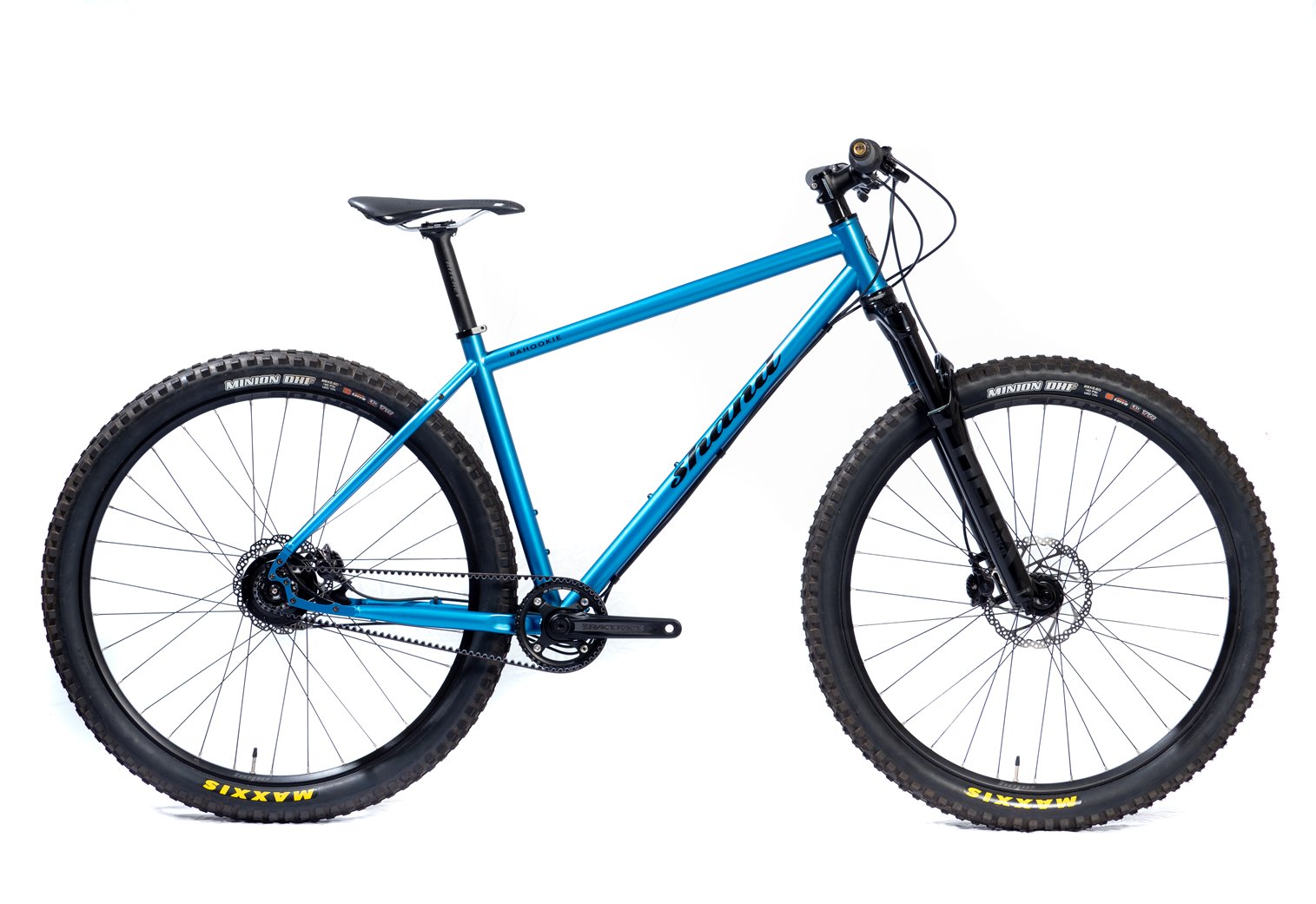

PLEASE NOTE WE ARE UPDATING OUR IMAGES, THE BLUE BIKE IS THE CURRENT Bahookie.
The Bahookie is our do-it-all mountain bike using Reynolds 631 hand-built steel frame designed around 29er or 650B+ wheels and a 120mm travel fork. Perfect for bikepacking, adventure racing, bashing round local trails or heading out for a long day in the hills. Simple.
01
PLEASE NOTE WE ARE UPDATING OUR IMAGES, THE BLUE BIKE IS THE CURRENT Bahookie.
The Bahookie is our do-it-all mountain bike with a hand-built Reynolds 631 steel frame designed around 29er or 650B+ wheels and a 120mm travel fork. Perfect for bikepacking, adventure racing, bashing round local trails or heading out for a long day in the hills.

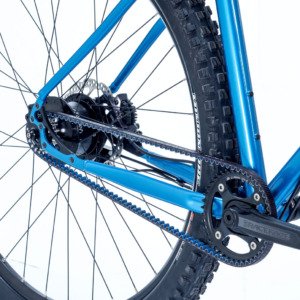

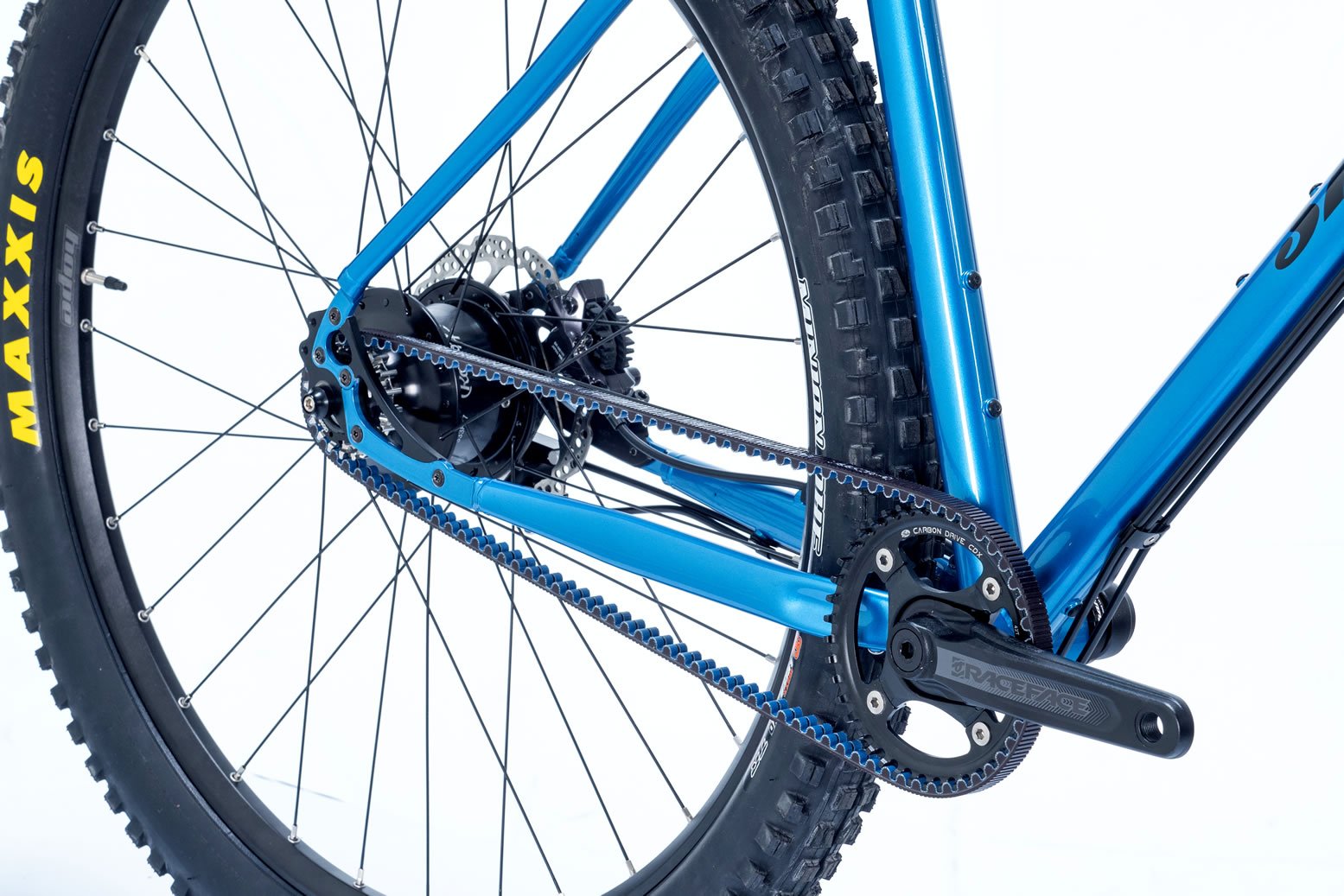

The Bahookie Rohloff takes this simple approach and adds to it with a reliable and bomb-proof transmission system from Rohloff and lightweight rigid carbon fork. With 14 gears and Gates Carbon Beltdrive, maintenance is minimal and lubrication after each ride is a thing of the past. Gear shifting is operated from a twist shifter on the bars and shifting can even be done while stationary. Belt tension is provided by an EBB (eccentric bottom bracket) that fits into a standard 73mm PF30 bottom bracket shell and the belt is fitted by way of a discrete frame splitter in the rear dropout.
As with the majority of Shand bikes, modular cable routing and rear dropouts can be changed to be compatible with single speed or derailleur drivetrains at a later date. If you’re ordering a frame only, the modular rear dropouts are available with the following transmission and disc brake options.
- 135×10 QR
- 148×12 bolt-thru
- Rohloff
- Singlespeed
- Derailleur with 1x crank (including direct mount)
- IS, Post and Flat disc brake mounts
- Integrated frame splitter for beltdrive
Frame | Tig welded Reynolds 631 steel main tubes. 135mm QR rear spacing (For Rohloff). |
Fork | Cane Creek Helm WS 120mm or Rigid Steel Bolt-Thru with Anything Cage Mounts |
Headtube / Headset | 44mm. Ride Works UK made headset installed on complete bike. |
Bottom Bracket | Ride Works Eccentric PF30 |
Seat Tube | 30.9mm seatpost diameter, dropper post compatible with internal stealth routing. |
Rear Dropouts | Polydrop dropouts compatible (with additional inserts) with Rohloff, singlespeed, 148x12, direct mount and standard derailleur transmissions. Fully compatible with belt-drive. |
Cable Routing | Down tube, full outer bolt on guides. |
Fitting | 3 sets of bottle mounts, rack mounts, mudguard eyes as standard. |
Tyres | Schwalbe Nobby Nic Addix 29 x 2.35 |
Wheels | Hope Fortus W30 Rim on Pro4/Rohloff |
Headset | Ride Works Made in the UK |
Stem | Ritchey |
Bars | Ritchey |
Shifters | Rohloff |
Brakes | Shimano M8100 |
Front Mech | N/A |
Rear Mech | N/A |
Chain/Belt | Carbondrive Gates CDX Belt |
Crank | Race Face |
Bottom Bracket | Ride Works Eccentric PF30 |
Cassette/Sprocket | Gates CDX |
Seatpost | Ritchey |
02
Geometry
A - Head Angle | 67° |
B - Seat Angle | 74.5° |
C - Top Tube | 597mm |
D - Seat Tube | 450mm |
E - BB Drop | 68mm |
F - Chainstay Length | 442mm |
G - Headtube Length | 105mm |
H - Wheelbase | 1146mm |
I - Front-Centre | 713mm |
J - Fork Offset | 51mm |
K - Trail | 102mm |
L - Reach | 422mm |
M - Stack | 613mm |
A - Head Angle | 67° |
B - Seat Angle | 74.5° |
C - Top Tube | 616mm |
D - Seat Tube | 465mm |
E - BB Drop | 68mm |
F - Chainstay Length | 442mm |
G - Headtube Length | 110mm |
H - Wheelbase | 1166mm |
I - Front-Centre | 733mm |
J - Fork Offset | 51mm |
K - Trail | 102mm |
L - Reach | 440mm |
M - Stack | 619mm |
A - Head Angle | 66.5° |
B - Seat Angle | 74.5° |
C - Top Tube | 640mm |
D - Seat Tube | 485mm |
E - BB Drop | 68mm |
F - Chainstay Length | 442mm |
G - Headtube Length | 120mm |
H - Wheelbase | 1190mm |
I - Front-Centre | 757mm |
J - Fork Offset | 51mm |
K - Trail | 103mm |
L - Reach | 461mm |
M - Stack | 627mm |
A - Head Angle | 66.5° |
B - Seat Angle | 74° |
C - Top Tube | 668mm |
D - Seat Tube | 495mm |
E - BB Drop | 68mm |
F - Chainstay Length | 442mm |
G - Headtube Length | 140mm |
H - Wheelbase | 1225mm |
I - Front-Centre | 791mm |
J - Fork Offset | 51mm |
K - Trail | 106mm |
L - Reach | 478mm |
M - Stack | 650mm |
